Construction Cable:conductor: 99.99% oxygen-free copper wire; insulation: PVC; Lugs:5mm or 6mm hole; M5 or M6
Product Features:
1. High quality pure copper conductor.
2. Low Resistance, Stable Conductivity and Strong Current Load.
3. PVC environmental insulated material.
4. Good flame retardant performance, safe and stable use.
5. Excellent terminals with stable connection and wear-resistant.
6. Factory direct sales, OEM is welcomed.
7. The bigger quantity, the bigger discount.

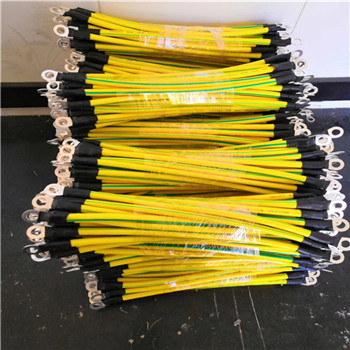

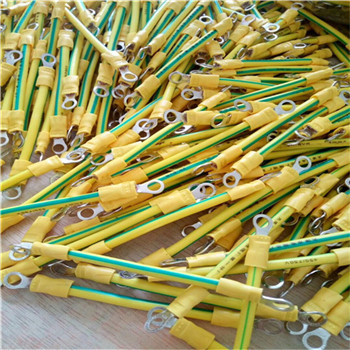

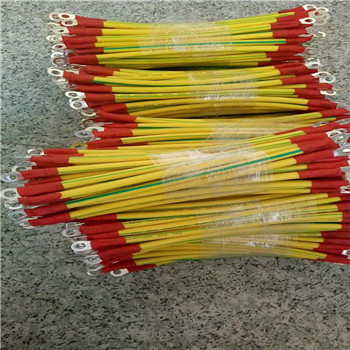

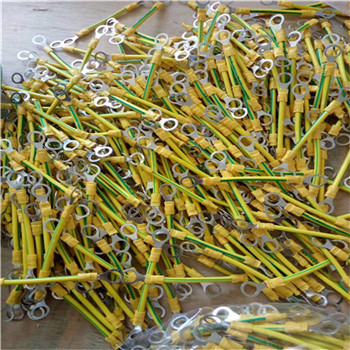

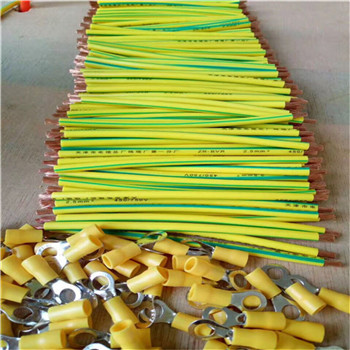

500mm length 2.5mm2 earth cable with one end crimped lug with 5mm hole
| Product Name | Photovoltaic Panel Grounding Wire With lugs |
| Product Conductor | Flexible Stranded Copper Conductor |
| Rated Voltage | 450/750V |
| Product Standard | IEC60227 |
| Insulation Material | PVC Insulation |
| Product Color | Yellow & Green |
| Product Length | 8CM/10CM/12CM/15CM/20CM/30CM (Can be customized) |
| Cross Section | 2.5MM2/4.0MM2/6.0MM2 (Can be customized) |
| Terminal Aperture Spacing | 4mm/5mm/6mm/8mm...(Can be Customized) |
| Temperature Rating | “-15degree to +70degree F14 |
| Product Application | Photovoltaic Solar Panels, Home Distribution Box, Project Engineering, Urban Power Grid, Bridge Earthing,Flange Grounding. |
CU/PVC Yellow/Green 600V earthing copper cable
Nominal section area | No./ diameter of core | Insulation thickness | Max outer diameter | Reference Weight | Conductor resistance at 20°C≤ |
(mm2) | (mm) | (mm) | (mm) | (km/kg) | (Ω/km) |
0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
